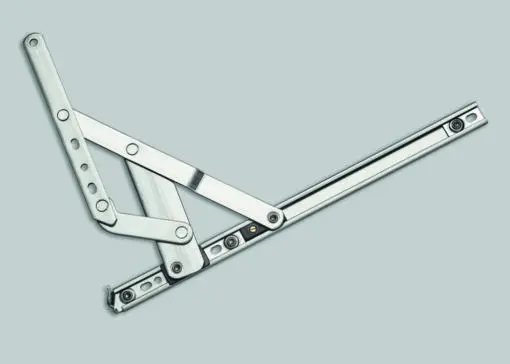

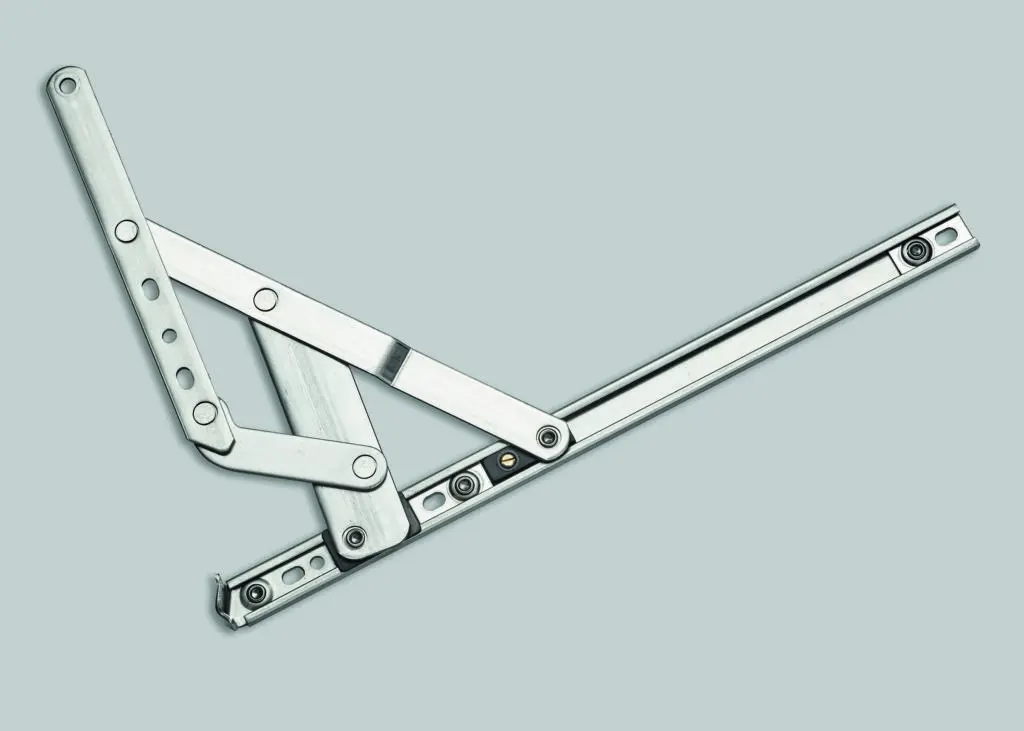

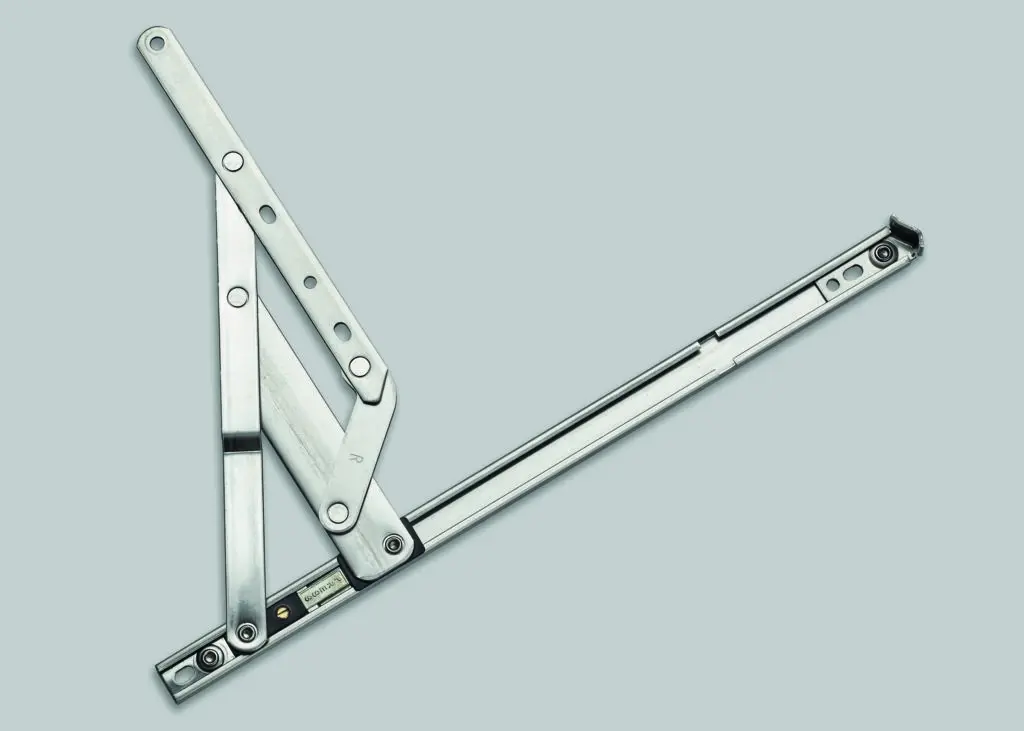

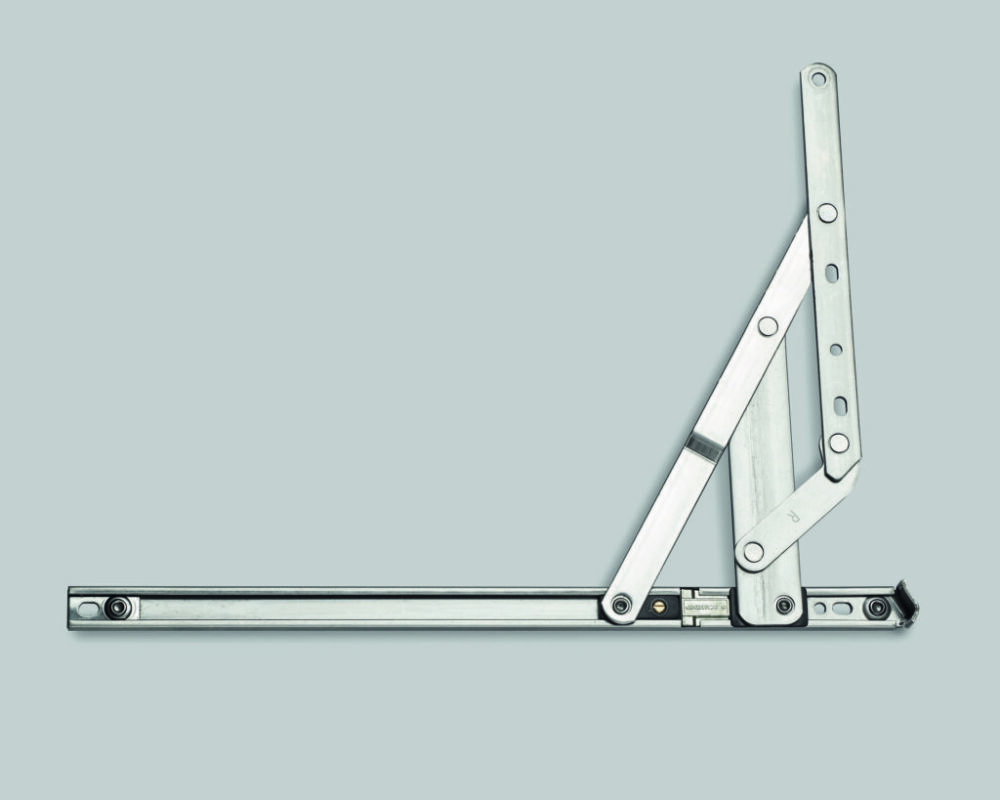

Atlas Egress Easy Clean Heavy Duty Friction Hinges 14mm

Features & Benefits

• Rigorously tested ( see related downloads on this page )
• 3 benefits in 1 hinge – Heavy Duty, Egress and Easy Clean
• Carries heavy weights ( up to 50kg ) and is suitable for large sashes ( up to 1000mm)
• Unique geometry provides greater clear opening even on small windows
• Unique geometry provides greater and more user friendly easy clean
• Button operation for easy clean is simple with automatic reset upon closure of the window
• Unique 18mm flush window variant
• Stainless Steel riveted nose cap gives strength and reliability
• 3 stage counterbore process improves resistance to wear
• Glass reinforced nylon slide eliminates breaking and wear
• 4.8mm Stainless Steel rivets improve load carrying
• Stainless construction has exceptional corrosion resistance
• Brass adjustment screw provides adjustable friction
• 10 year mechanical guarantee

Technical Data

The Atlas range is manufactured in stainless steel and offers excellent load bearing characteristics. Heavy duty hinges have increased bar thicknesses and 14mm and 17mm stack heights are available to support increased weight requirements. Atlas hinges are available in 12?, 14? and 16? side hung variants. Slotted fixing holes in the base channel and sash bar, with a final fixing hole in each component, provide maximum sash/frame adjustment. The stainless nose-cap is riveted on to the hinge for extra strength and rivet holes are counterbored in a 3 stage manufacturing process. This means parts are manufactured to tight tolerances and ensures reliable operation of the finished hinges. The friction slide is made from high strength glass reinforced nylon with an adjustable resistance screw to regulate friction.

Fitting instructions for Atlas Friction Hinges are provided in the Atlas Heavy Duty Hinge pdf and the standard Friction Hinge Fitting Guide link in related downloads.
