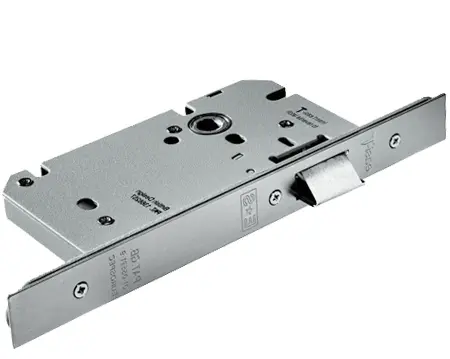

Eurospec Din Latch (Architectural), Satin Stainless Steel Finish Standard (With Optional Extra Finish Face Plates)

Product Details

• Please Take Care When Selecting These Locks And Latches, They Are Din Standard (European) Not British Standard. The Locks Cases Are Much Larger And Both The Forend & Strike Plates Are Longer And Narrower (Relevent Dimensions Are Listed Below). If You Would Like Some Further Assistance Please Do Not Hesitate To Contact Our Sales Team On 01254 670 087

• DIN Standard Locks And Latches Are More Commonly Used In Commercial Enviroments. They Are Often Referred To As ‘Specification’ Locks. All The Lock Cases Are The Same Size, Therefore Doors Can Be Prepared In Advance In Order To Save Time.

• Satin Stainless Steel Finish

• Choice Of Square Or Radius (Rounded Edges) Forend & Strike Plates

• Lock Case Dimension: 85mm x 150mm

• 55mm Backset (depth from centre of spindle hole to forend plate)

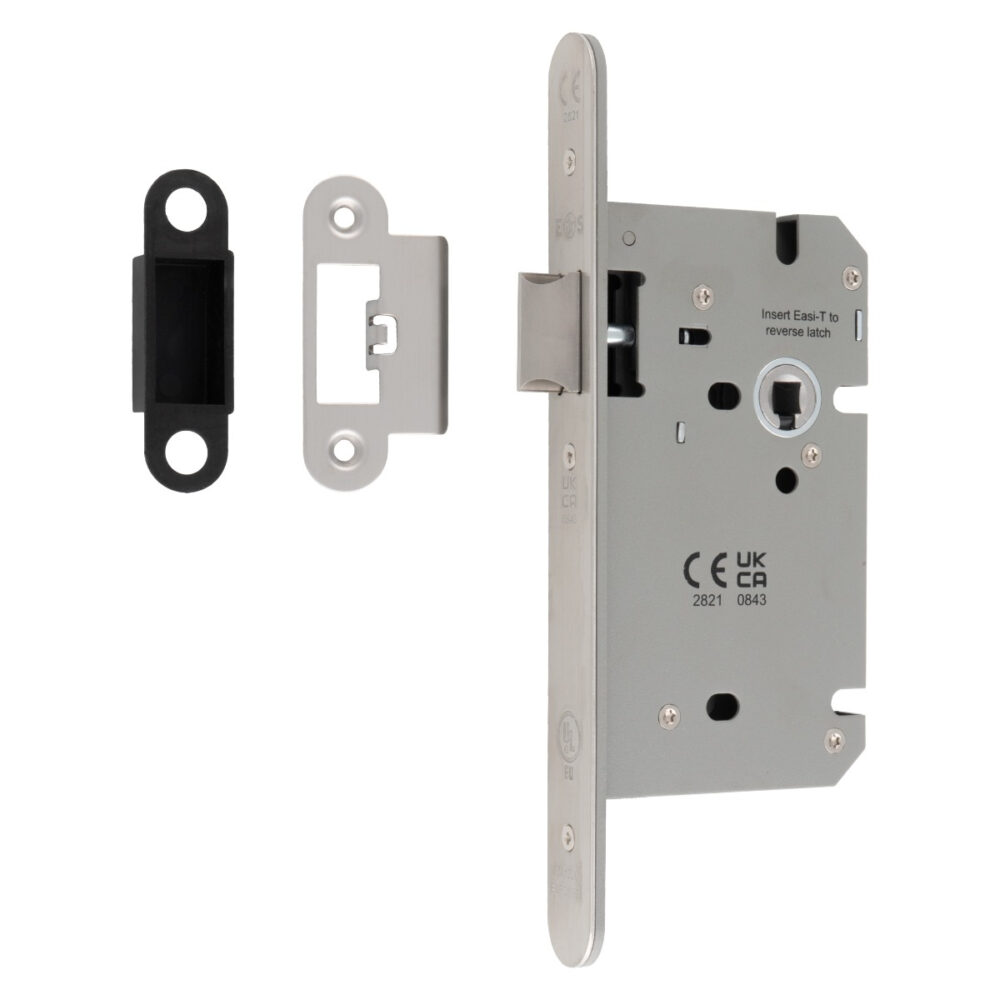

• Supplied With Both Forend & Strike Plates (Not Shown)

  Dimensions:

  Forend Plate – 235mm x 24mm

  Strike Plate – 86mm x 22mm Widening To 37mm At Strikepoint

• 5 Year Warranty

• ‘Easi T’ For Simple Latch Tongue Reversal

• Bolt Through

• Rebate Sets Available, Please See Related Products Below

This lock contains through bolt holes either side of the spindle hole, which enable use of the through bolts supplied with our lever on rose handles.

Double sprung or Architectural quality basically means heavy duty. You would select this standard of lock or latch for ‘un-sprung’ furniture or doors that are in constant use. Perhaps in a commercial type environment.
