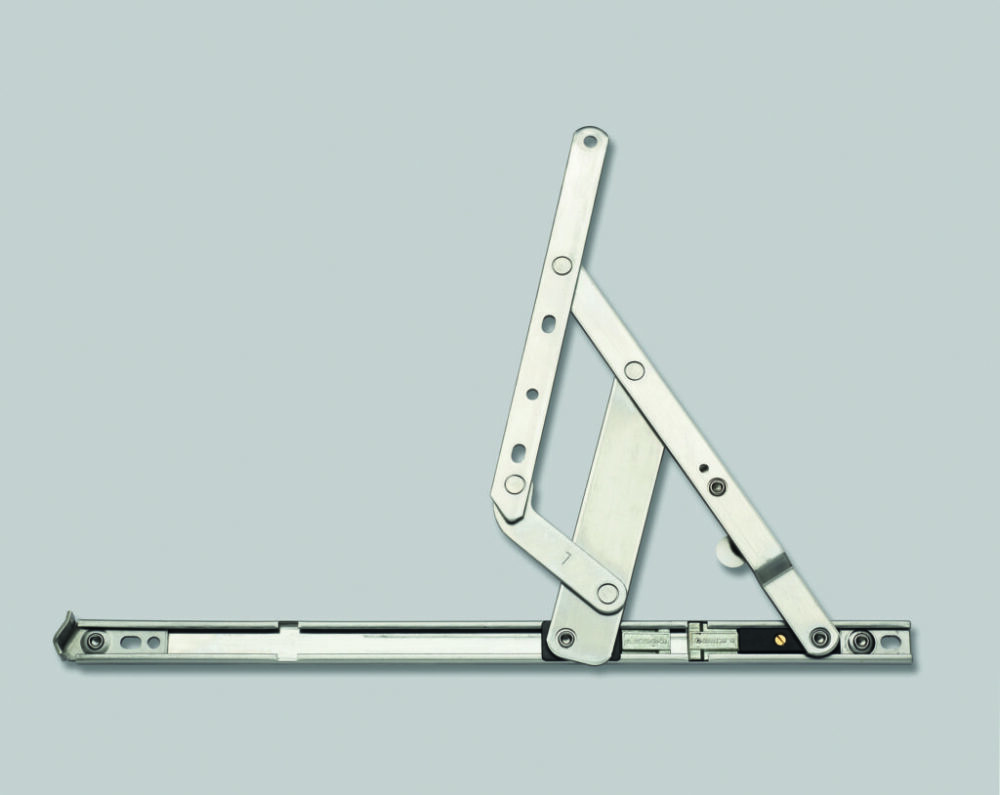

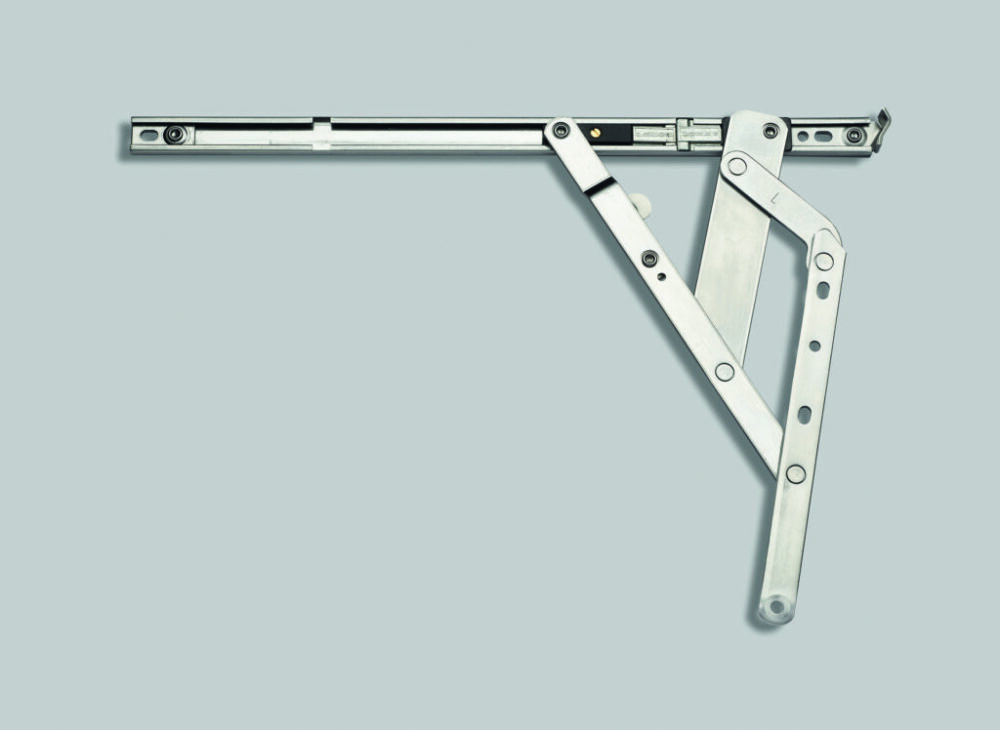

Atlas Quad Stay Restricted Egress Easy Clean Heavy Duty Friction Hinges 17mm

Features & Benefits

• Rigorously tested ( see related downloads on this page )
• 4 benefits in 1 hinge – Restriction, Heavy Duty, Egress and Easy Clean
• Restricts initial window opening ( see technical data below )
• Child resistant catch release for full opening, with automatic reset on closure
• Carries heavy weights up to 45kg
• Unique geometry provides greater clear opening for escape
• Unique geometry provides greater and more user friendly easy clean
• Simple easy clean button operation with automatic reset upon closure of the window
• Stainless Steel riveted nose cap gives strength and reliability
• 3 stage counterbore process improves resistance to wear
• Glass reinforced nylon slide eliminates breaking and wear
• 4.8mm Stainless Steel rivets improve load carrying
• Stainless construction has exceptional corrosion resistance
• Brass adjustment screw provides adjustable friction
• 10 year mechanical guarantee

Technical Data

The Nico Atlas Quad Friction Hinge is robustly built with stainless steel construction. With 4.8mm counter bore rivet assembly, stainless nose-caps and a stainless steel reinforcing plate all Atlas hinges carry significantly greater weight than standard hinges. The asymmetric hinge geometry produces an especially smooth opening and closing action, and additional fixing holes provide increased stability.

Compliance to BS 8213 provides a minimum 95mm gap for cleaning. It is recommended that fabricators check all restricted openings to ensure they comply with Building Regulations, as vent sizes and profile variations will affect 100 mm opening.

Fitting instructions for the Quad stay are provided in the Atlas Quad pdf and the standard Friction Hinge Fitting Guide link in related downloads.

Restricted, Egress, Easy Clean, Heavy Duty

Bulk Packed in 25 singles
