Description
Features & Benefits
- Integral security feature
- Strong and Reliable

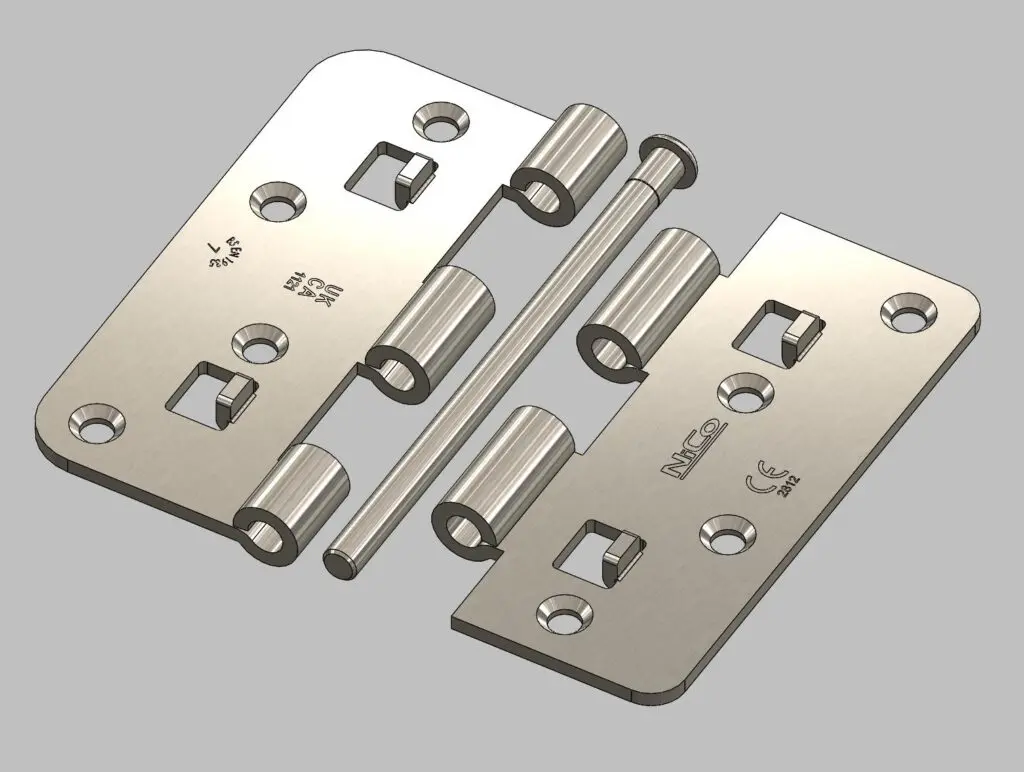

- Fixed pin and loose pin options
- Fixed pin option for inward and outward opening doors has spun pin to resist attack and removal
- Grade: CS4 mild steel
- R6 radius corners
- Maximum adjusted door weight: 40kg
- Minimum recommended door thickness: 44mm
- Corrosion resistant finishes
- Loose pin option for inward opening doors

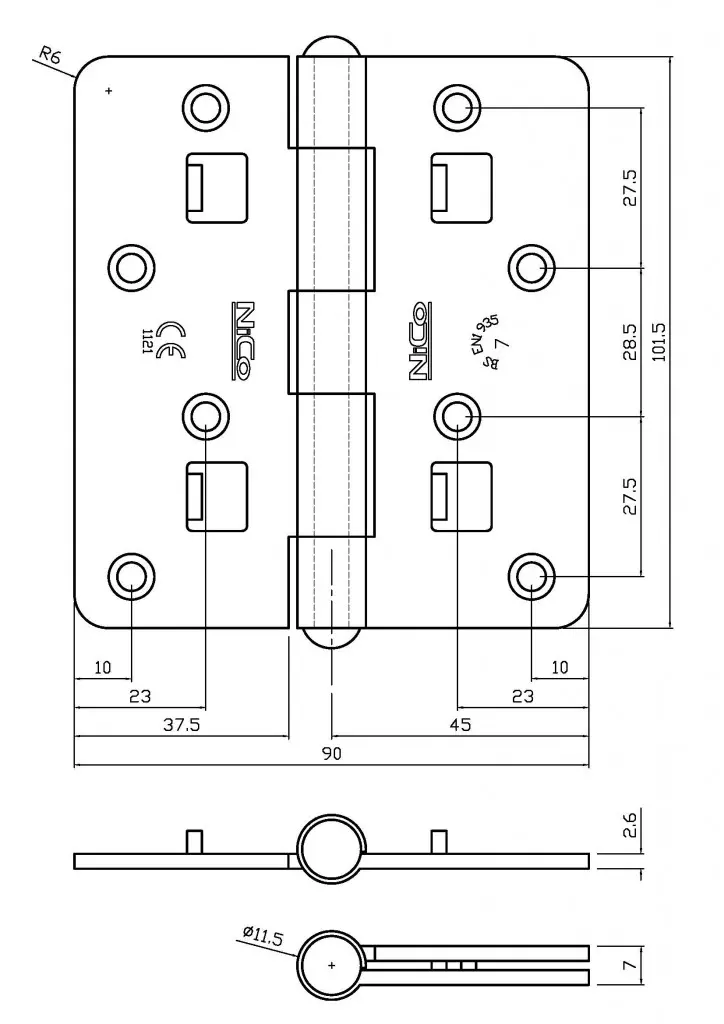

Technical Data
PART NUMBERS
ZP loose Male Leaf4542 3 00 04
Size |
100mm (4?) |
| Type | Radius R6 Fixed |
| Length | 100mm |
| Width Open | 90mm |
| Thickness | 2.64mm |
| Screw holes/size | 8/10 |
| Bulk Packed | 40 |
| Zinc-Plated set | 4542 0 22 04 |
| Max. load (2 hinges fitted) | 40kg |
| Max. load (3 hinges fitted) | 40kg |
| Material | Mild Steel |
Additional information
| size | |
|---|---|
| finish | |
| unit | |
| per-piece |
Brand
Brand
Nico
