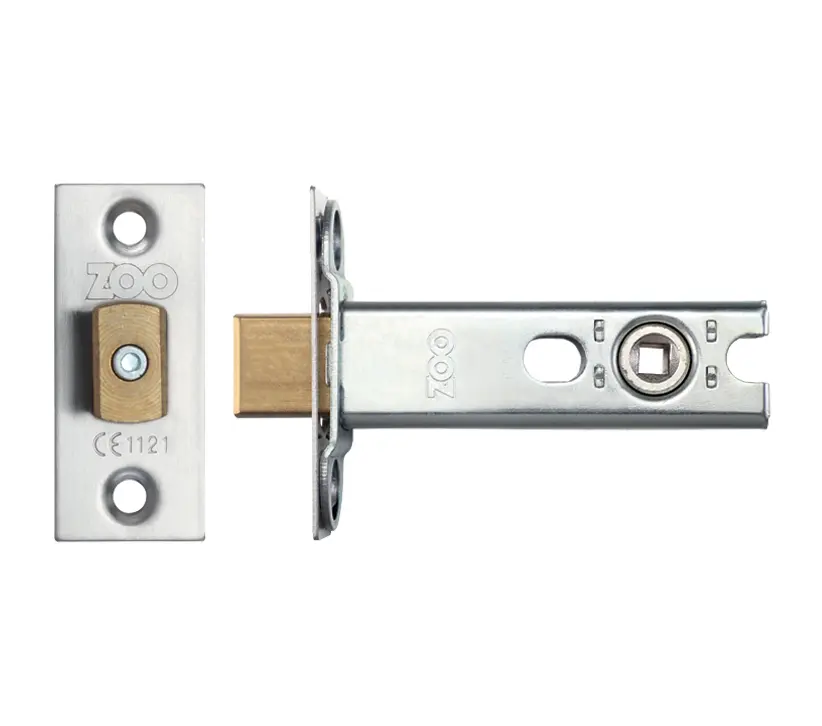

Zoo Hardware Architectural Tubular Dead Bolt (Bolt Through) – Stainless Steel Finish

Product Details

• A Dead Bolt is designed to be used with a Turn & Release, and is ideally suited to bathroom doors or bedroom doors

• The deadbolt is operated by a 5mm spindle and the bolt deploys with a quarter turn

• BS EN 1634-1

• Various Sizes Available:

    – (2.5 Inch) 15 x 22 x 64mm Body, 44.5mm Backset
    – (3 Inch) 15 x 22 x 76mm Body, 57mm Backset
    – (4 Inch) 15 x 22 x 102mm Body, 82mm Backset
    – (5 Inch) 15 x 22 x 127mm Body, 108mm Backset
    – (6 Inch) 15 x 22 x 152mm Body, 127mm Backset

• 25mm x 65mm Forend

• Suitable for Bolt Through Fixing

• 10 year mechanical guarantee

• Bodies only available (BDS)

This item is intended for use with a bathroom turn & release

Double sprung or Architectural quality basically means heavy duty. You would select this standard of lock or latch for doors that are in constant use or even subject to abuse. Perhaps in a commercial type environment

Please note, these dead bolts come as standard with Stainless Steel face plate & strike plate (with exception to the Body Only pack) although a variety of finishes are available as an accessory pack which are compatible with this dead bolt and must be ordered separately.  Please see related products
