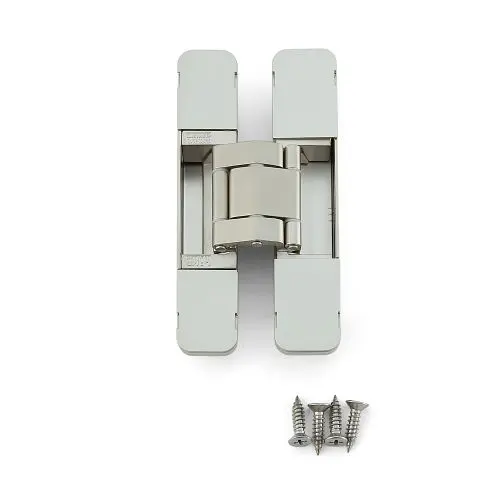

Sugastsune Hes3D-120Dn 3-Way Adjustable Concealed Hinge Satin Nickel
£38.88 - £43.20
You save
- Max door weight: 30kg/2pc, 40kg/3pc
- Min. door thickness: 29mm
- Max door width: 900mm
- Max door height: 2400mm
- Parts Included
Countersunk head tapping screw 520
Hex. wrench (a nominal diameter 3)
Cutout template
Sold Separately

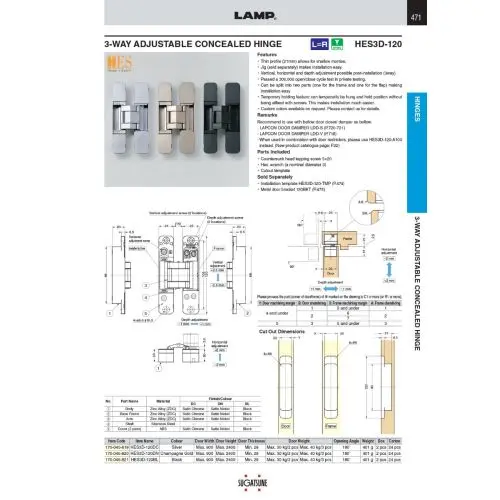

Installation template HES3D-120-TMP (P.474)
Metal door bracket 120BKT (P.475)
Flat Sale 5% off, Code FLAT5UK
minutes left only.
| Finish | |
|---|---|
| size | |
| unit |
Out of stock
Amazing customer service 24 x 7
1 to 2 days
Dispatch
Description
3-WAY adjustment function allows vertical, horizontal, and depth adjustment after hinge installed. Easy installation and adjustment. Successfully passed 300,000 open/close private cycle tests. Supplied with steel flat head screw. Covers hide all screw heads for clean appearance. Door weight: Max. 30 kg (66 lbs)/2 pcs, 40 kg (88 lbs)/3 pcs Door Thickness: Min. 29 mm (1-1/8″) Max. Door Size: H 2400 mm W 900 mm (H 94-1/2″ W 35-7/16″) Bracket for sheet metal available.
Brand
Brand
SUGASTSUNE
