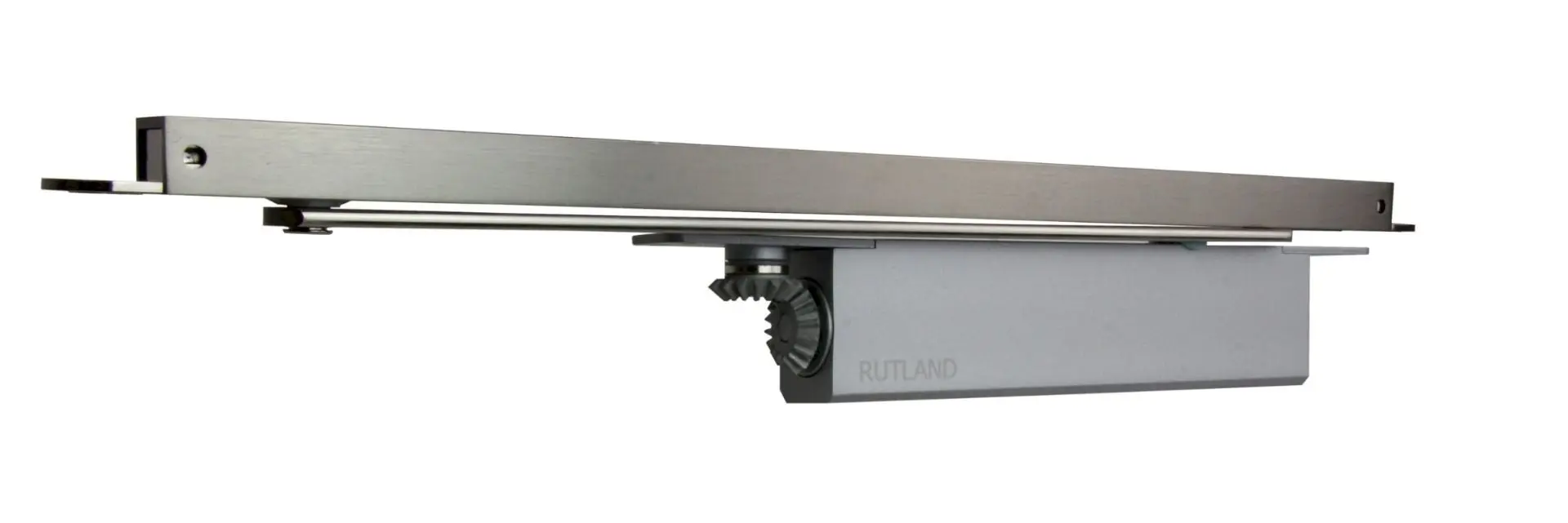

Rutland TS.11204 Door Closer EN 2-4 Concealed Cam Action Door Closer c/w SA Connector Bar Satin Nickel

Rutland TS.11204 Door Closer EN 2-4 Concealed Cam Action Door Closer c/w SA Connector Bar Satin Nickel. Rutland TS.11204 cam action door closer is renowned for its high efficiency & ease of opening, it has been tested to BS8300 for DocM contracts. This Surface Slide arm closer has a slimline construction (39mm projection) and temperature stable hydraulic fluid, which operates effectively in temperatures between -15C and 40C.

The Rutland TS.11204 Concealed Cam Action Door Closer in Satin Nickel offers superior performance with a sleek, unobtrusive design. Engineered for doors weighing up to 80kg and widths up to 1100mm, this door closer provides smooth, controlled closing while preserving the clean aesthetics of your door setup.

Concealed Design for Seamless Integration

Designed to be installed within the door and frame, the TS.11204 remains hidden from view, maintaining the elegant appearance of the door. With a minimal projection of just 39mm, it blends seamlessly into modern and traditional interiors without bulky hardware detracting from the design.

Reliable Cam Action Technology

Featuring advanced cam action mechanics, this door closer ensures a smooth and consistent closing cycle, reducing the risk of slamming and damage. Both the closing speed and latching action are fully adjustable, allowing precise control tailored to your environment’s needs.

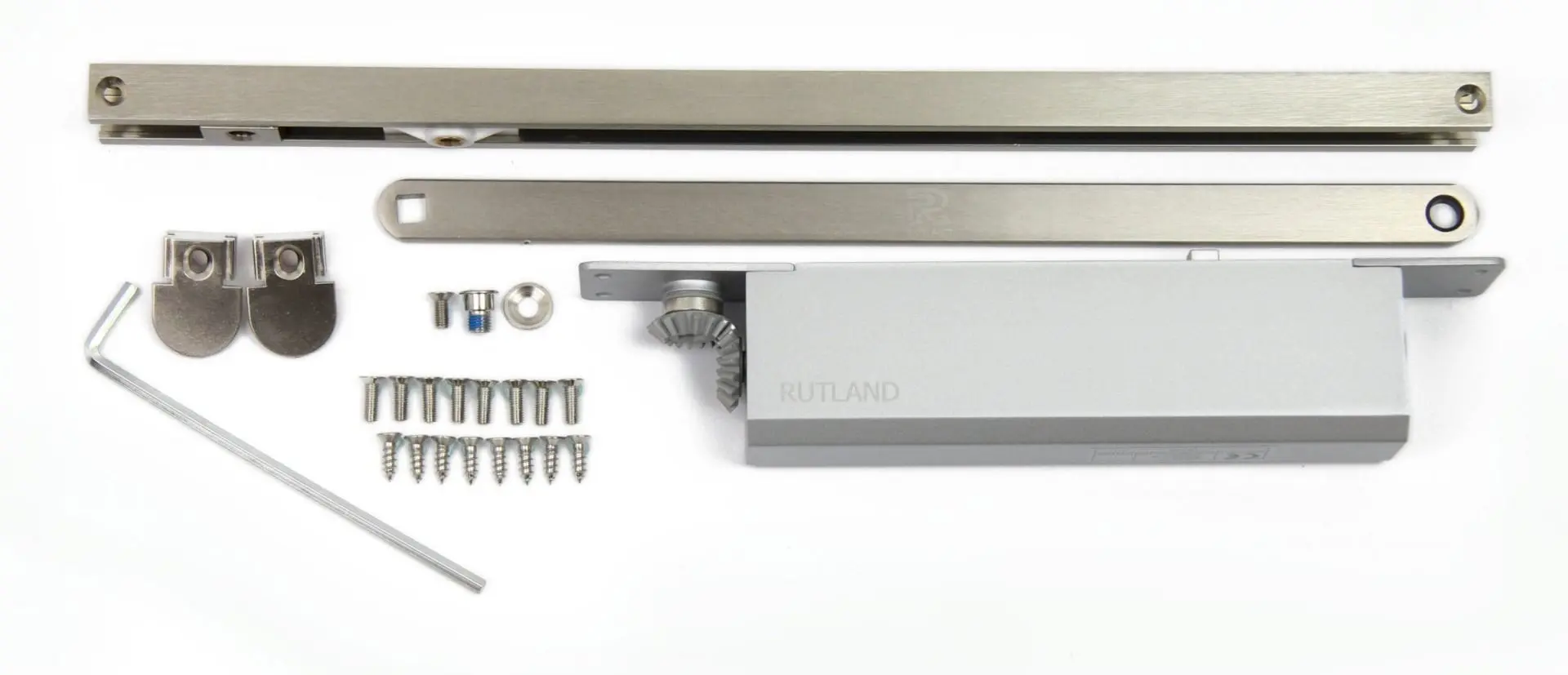

SA Connector Bar Included

The closer comes complete with an SA Connector Bar, enhancing installation stability and ensuring secure attachment between the door and frame for optimal operation.

Compliance and Safety

The TS.11204 is fire tested to EN1634-1, Certifire approved, and CE marked, guaranteeing compliance with stringent safety and fire performance standards. Its temperature-stable hydraulic fluid ensures reliable operation across a wide range of indoor temperatures.

Versatile Installation

Suitable for pull side, push side, and transom mounting, the TS.11204 adapts easily to various door configurations. The concealed fitting makes it ideal for both commercial and residential applications where aesthetics and performance are priorities.

Key Features:

• Power size EN 2-4 – supports doors up to 80kg and 1100mm wide

• Concealed installation with minimal 39mm projection

• Smooth cam action mechanism with adjustable closing and latching speeds

• Includes SA Connector Bar for secure fitting

• Fire tested EN1634-1, Certifire approved, and CE marked

• Satin Nickel finish for durability and style

• Suitable for pull, push, and transom fitting positions

• Ideal for fire doors, commercial, and residential use

Upgrade your door hardware with the Rutland TS.11204 Concealed Cam Action Door Closer in Satin Nickel — combining discreet design with robust, compliant performance.

Brand

Rutland
