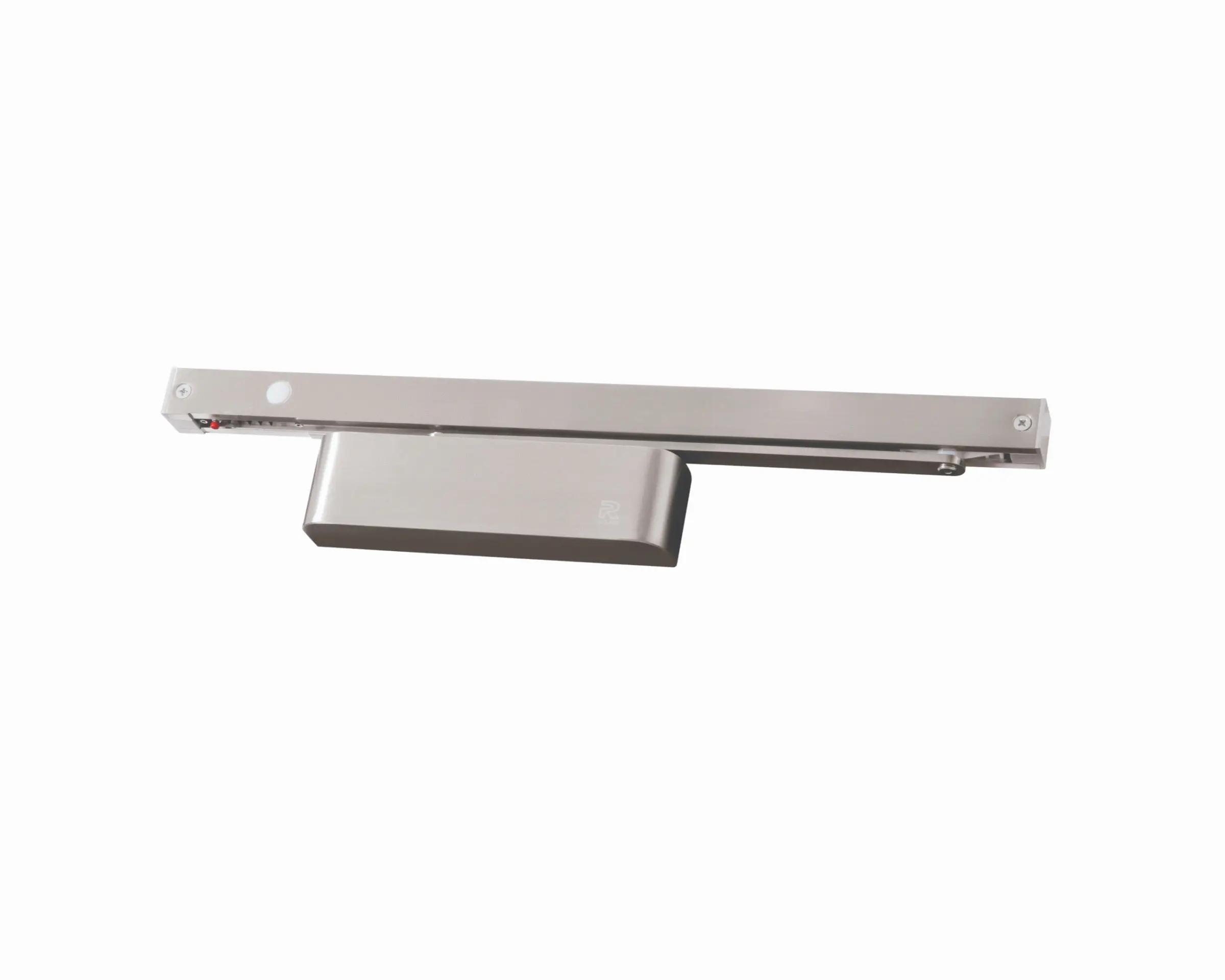

Rutland TS.FIRETRAK.114 Electromagnetic Slide Arm Closer

TS.FIRETRAK.114 Electromagnetic Slide Arm Closer is a surface mounted Electromagnetic hold open slide arm with cam action door closer designed for fire and smoke compartmentation doors.  Fire and smoke doors will operate in a controlled close with the TS.FIRETRAK.114 when the fire or smoke alarm is activated.

The Rutland TS.FIRETRAK.114 Electromagnetic Slide Arm Closer is a surface-mounted electromagnetic hold-open slide arm with a cam-action door closer, designed for fire and smoke compartmentation doors. In the event of a fire or smoke alarm activation, the door will operate in a controlled close, ensuring safety and compliance with fire safety regulations.

Key Features:

• Variable Power Size EN2–4: Accommodates doors up to 80kg in weight and 1100mm in width, providing flexibility for various door sizes.

• Assists BS8300 for DocM Contracts: Ensures ease of opening forces, facilitating accessibility and compliance with building regulations.

• Universal Application: Can be fitted in standard, parallel arm, or transom fitting positions, suitable for push, pull, left, or right-handed doors.

• Fire and Smoke Compartmentation: Designed to ensure doors operate in a controlled close when a fire or smoke alarm is activated, enhancing safety.

• Tested to EN Standards: Complies with EN 1155 (electrical compatibility), EN 1154 (controlled door closing devices), and EN 1634 (dual orientation fire tests), ensuring reliability and performance.

• Third-Party Fire Certification: Provides assurance of quality and compliance with fire safety standards.

• UL and ANSI Grade 1 Classification: Meets stringent quality and performance standards for door hardware.

• 5-Year Guarantee: Offers peace of mind with a comprehensive warranty on the product.

Technical Specifications:

• Voltage: 24V DC

• Current Draw: 84mA

• Power Consumption: 2W

• Recommended Power Supply Unit: Rutland PSU.1224.9, providing 24V DC output. For double doors, a 2A power supply unit is recommended to operate two electromagnetic closers.

Applications:

Ideal for high-traffic areas requiring durable and reliable door control, the Rutland TS.FIRETRAK.114 Electromagnetic Slide Arm Closer is suitable for various applications, including healthcare facilities, educational institutions, and commercial buildings.
