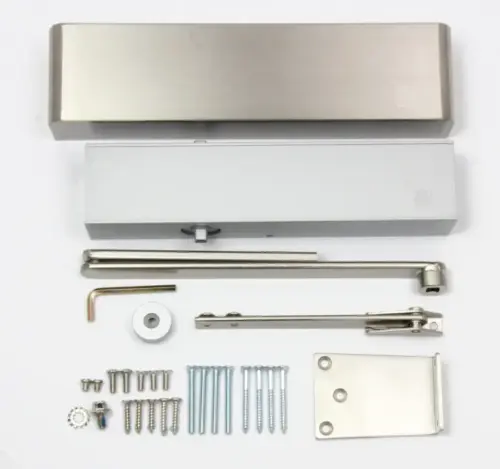

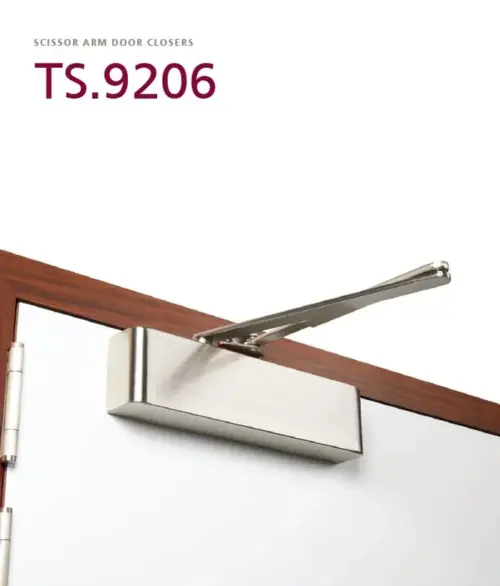

Rutland TS.9206 Door Closer

Rutland TS.9206 Door Closer is a highly efficient door closer with immense torque and control, ideal for heavy usage.  It comes with a slimline appearance and power-adjustable force to meet the specification requirements of the most discerning architectural contracts.

Successfully third party tested to BS EN1154 & CE marked to power size 2-6.

The Rutland TS.9206 Door Closer is engineered for high-performance applications, offering exceptional durability and control. Ideal for both commercial and residential settings, it ensures secure and efficient door operation.

Key Features:

• Adjustable Power Size (EN2–6): Accommodates a wide range of door weights and sizes, providing flexibility for various installations.

• Maximum Door Weight: Supports doors up to 120kg, suitable for heavy-duty applications.

• Maximum Door Width: Compatible with doors up to 1400mm wide, ensuring versatility in different environments.

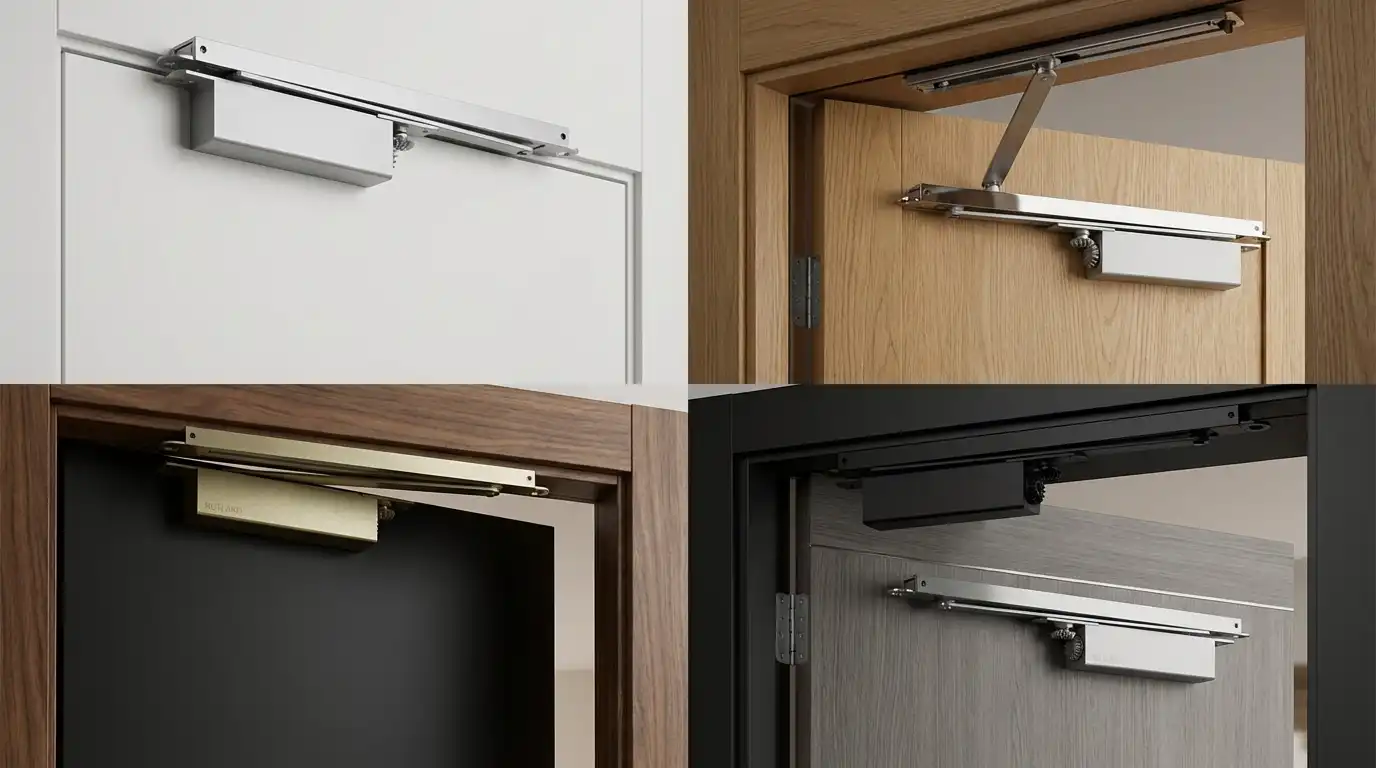

• Universal Application: Can be installed in standard, parallel arm, or transom positions, offering adaptability to diverse door configurations.

• Opening Angle: Supports a full 180° opening, facilitating easy access and movement.

• Delayed Action Function: Adjustable delayed action feature ensures the door remains open for a set period, accommodating users with mobility aids.

• Backcheck Function: Prevents the door from being thrown open forcefully, protecting walls and surrounding areas.

• Adjustable Closing & Latch Speed: Allows fine-tuning to control the door’s closing speed and final latching action, enhancing safety and comfort.

• Fire Rated: Tested to EN 1634 standards, providing up to 120 minutes of fire resistance, crucial for safety compliance.

• Corrosion Resistance: Available in various finishes, including marine-grade 316 stainless steel, suitable for external and coastal environments.

• CE & UKCA Marked: Complies with European and UK standards, ensuring quality and reliability.

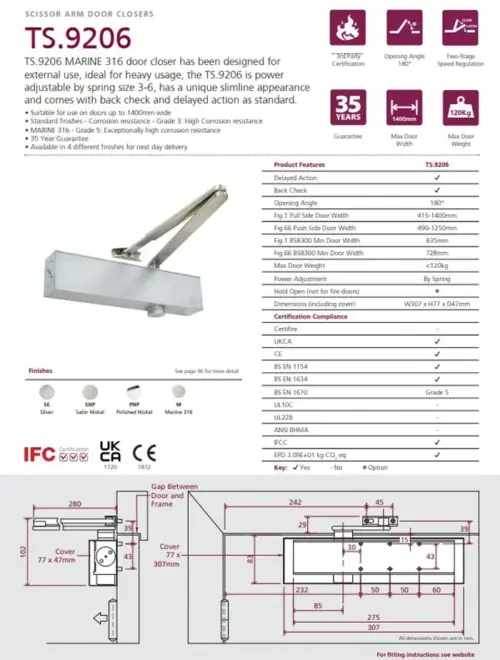

• Dimensions: 307 x 77 x 47mm (WxHxD), compact design for aesthetic integration.

• 35-Year Guarantee: Offers long-term assurance of product quality and performance.

Available Finishes:

• Silver (SE)

• Satin Nickel Plate (SNP)

• Polished Nickel Plate (PNP)

• Polished Brass (PVD)

• Satin Stainless Steel (SSS)

• Polished Stainless Steel (PSS)

• Black (BK)

• Marine 316 (M)

Applications:

Ideal for high-traffic areas, fire doors, and locations requiring robust and reliable door control.
