Multilock + 250mm Low Handle Height Offset Multilock Security Espagnolette 20mm Backset 9.0mm Cam

Features & Benefits

• Rigorously tested ( see related downloads on this page )
• Combination of adjustable and non adjustable cams to enhance security
• Enhanced security as a result of profile specific, 4 screw hole, solid zinc keeps

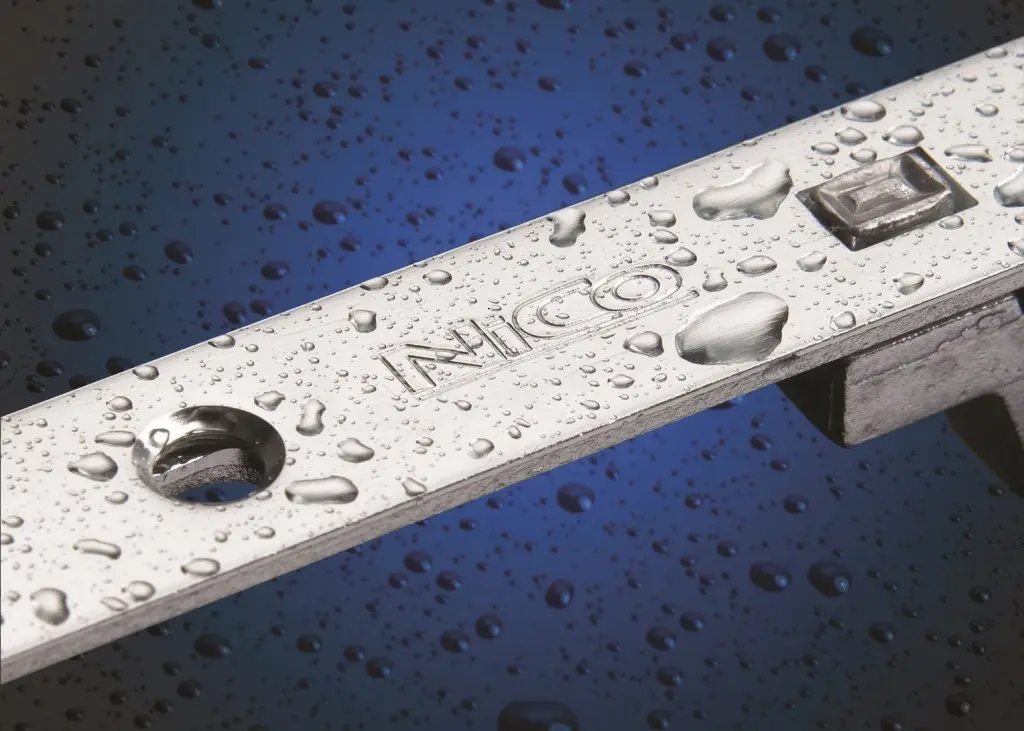

• Exceptional resistance to corrosion achieved by Supercoat finish
• Low handle height option for multi occupancy dwellings
• Adjustable cams ( /- 1mm ) allow weatherseal compression
• Night vent facility provided on keeps
• Strong. smooth and reliable gearbox gives long life performance
• 10 year mechanical guarantee

Technical Data

The Multilock is fast and easy to fit in a standard eurogroove. It features a 20mm or 22mm gearbox and eccentric cams of 7.8mm or 9mm. The cams allow weatherseal pressure adjustment of /- 1mm. Heavy guage materials and fixing points protect against attack. An offset gearbox option ( special order ) is available for lower handle positions.

Fitting instructions are provided on the Multilock pdf in related downloads

20mm Backset Multilock

Brand

Nico
