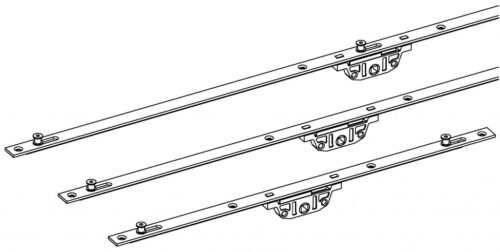

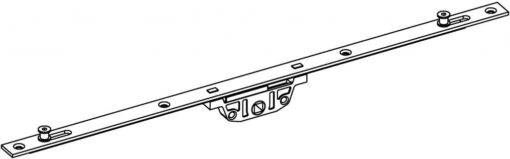

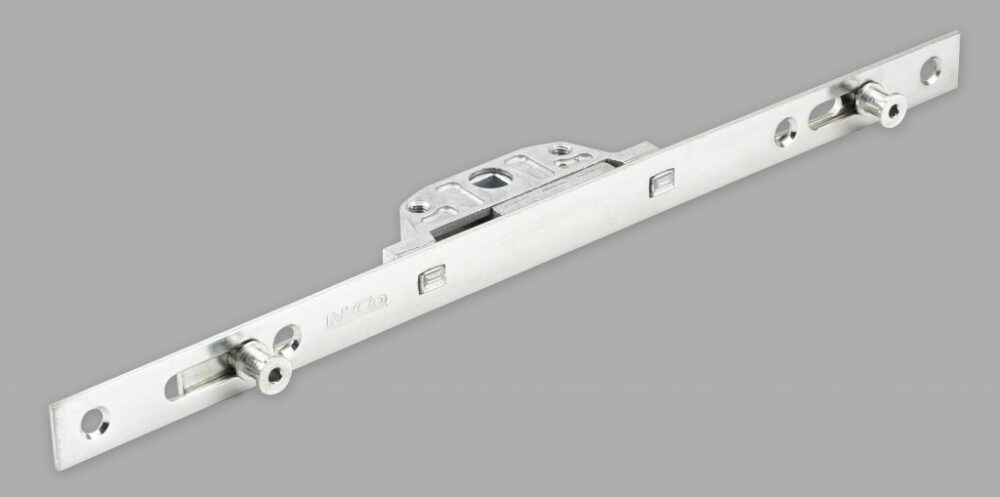

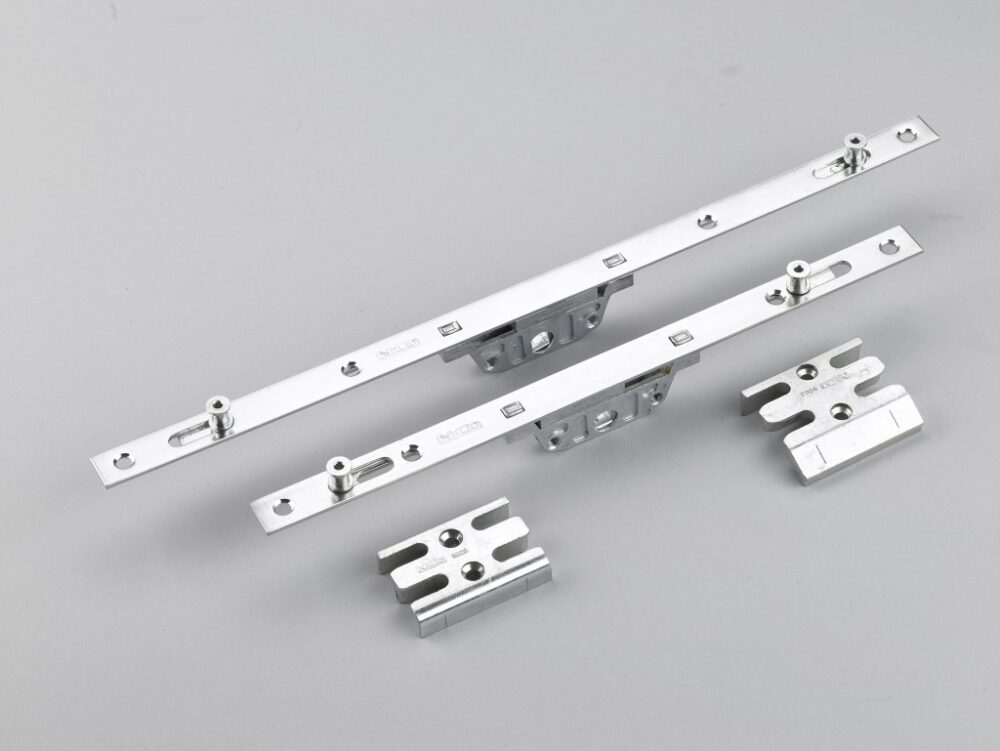

The Nico Espagnolette comes in a range of sizes, from 170mm up to 1150mm, with one to three cams and two to six fixing holes according to length. For the two longest sizes, an additional central cam provides compression on larger sashes.
The Espagnolette is available with lockcase backsets of 20mm or 22mm, a 7mm square spindle drive and operating handle fixing holes at 43mm centres. The eccentrically adjustable cams are either 7.8mm or 9mm according to customer requirements.
Fitting instructions are provided on the Espagnolette pdf in related downloads.
Description |
Order No. 7.8mm |
Order No. 9mm |
No. of Cams |
Box Quantity |
170mm Espagnolette bolt | 98222S5 | 99222S5 | 1 | 20 |
280mm Espagnolette bolt | 98322S5 | 99322S5 | 2 | 20 |
350mm Espagnolette bolt | 98422S5 | 99422S5 | 2 | 20 |
550mm Espagnolette bolt | 98622S5 | 99622S5 | 2 | 20 |
750mm Espagnolette bolt | 98822S5 | 99822S5 | 2 | 20 |
950mm Espagnolette bolt | 981022S5 | 991022S5 | 3 | 20 |
1150mm Espagnolette bolt | 981222S5 | 991222S5 | 3 | 20 |
