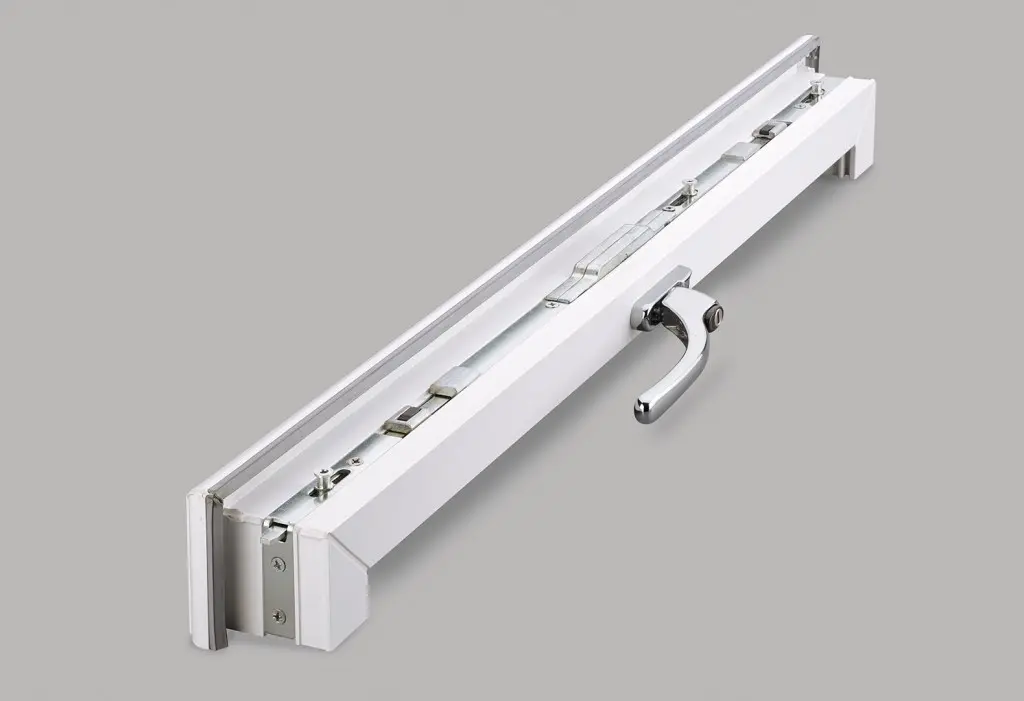

Telescopic Shootbolt 22mm Backset 9mm Cam

Features & Benefits

• Rigorously tested ( see related downloads on this page )
• Unique Telescopic Design means no cropping & fewer parts to stock
• In situ adjustment of shootbolt throw
• Cams and shootbolts travel towards the vulnerable corners of the window
• Enhanced security as a result of profile specific solid zinc keeps
• Exceptional resistance to corrosion achieved by Supercoat finish
• Adjustable cams ( /- 1mm ) allow weatherseal compression
• Can be removed after fitting without causing damage
• Night vent facility provided on keeps
• Compatible range of keeps for French Windows
• Strong. smooth and reliable gearbox gives long life performance
• 10 year mechanical guarantee

Technical Data

The Telescopic Shootbolt is fast and easy to fit in a standard eurogroove, and for fabricator convenience it uses the same routing preparation as Nico Espags and Multilocks. It features a 22mm Gearbox and eccentric cams of 7.8mm or 9mm. The cams allow weatherseal pressure adjustment of /- 1mm. Heavy gauge materials and fixing points protect against attack.

Telescopic Shootbolt: 22mm Backset
