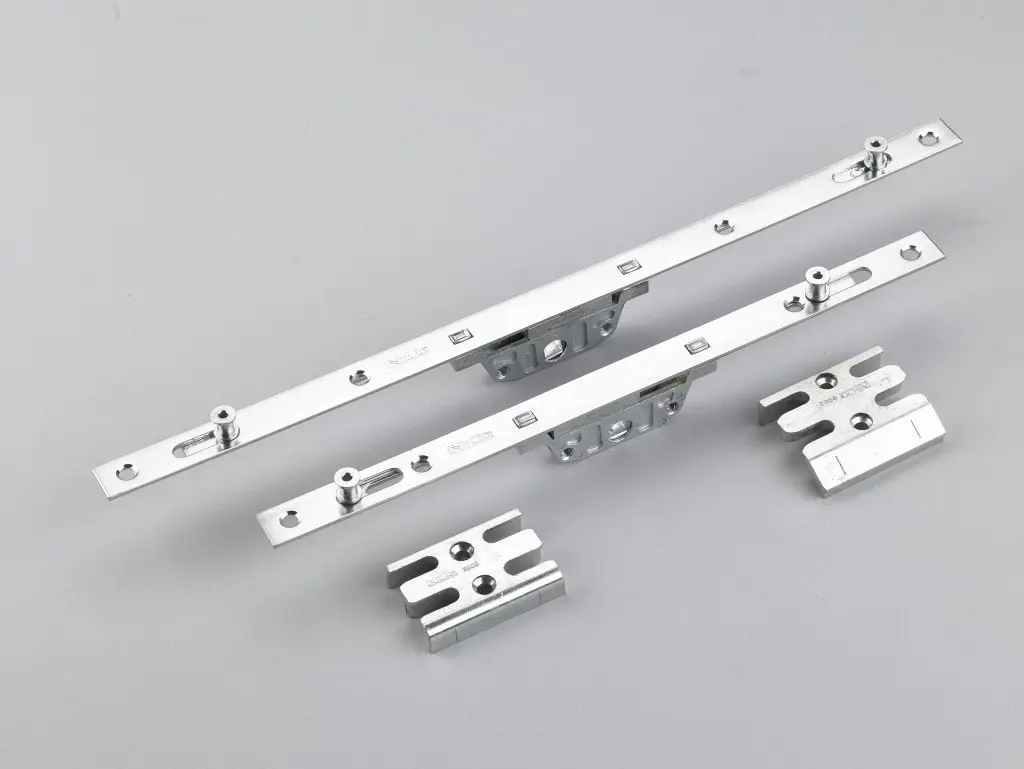

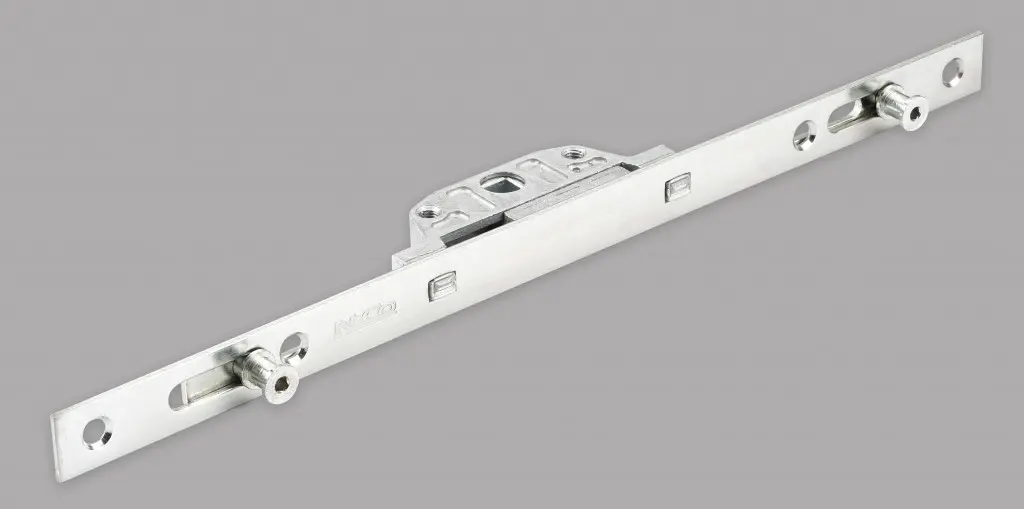

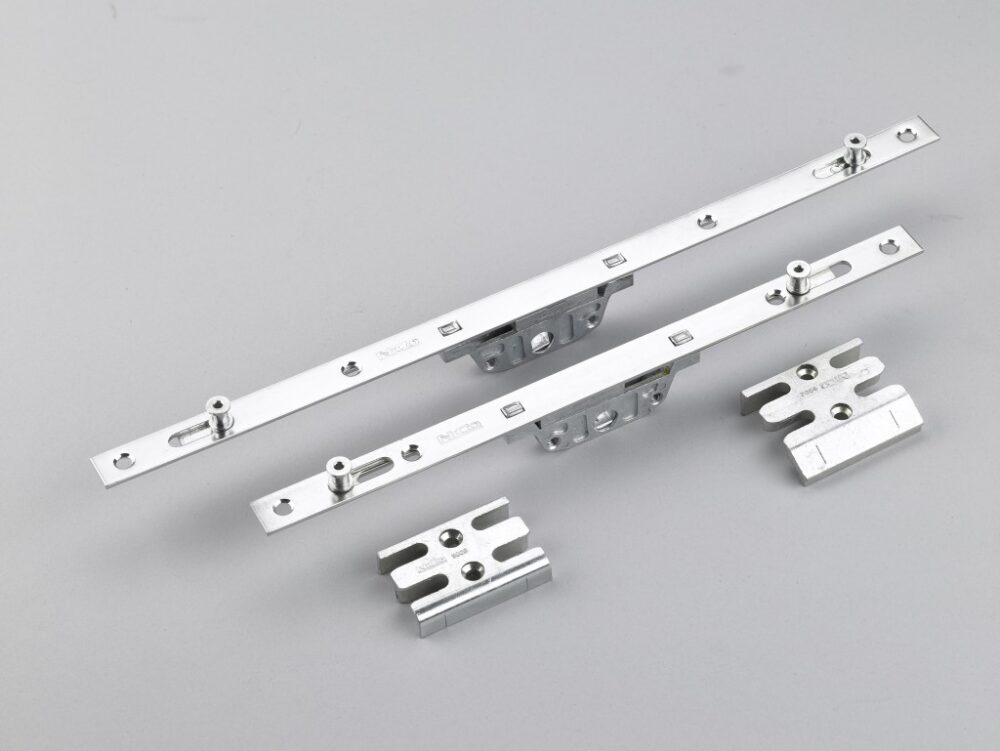

Standard Espagnolette 7.8mm Cam

Features & Benefits

• Rigorously tested ( see related downloads on this page )

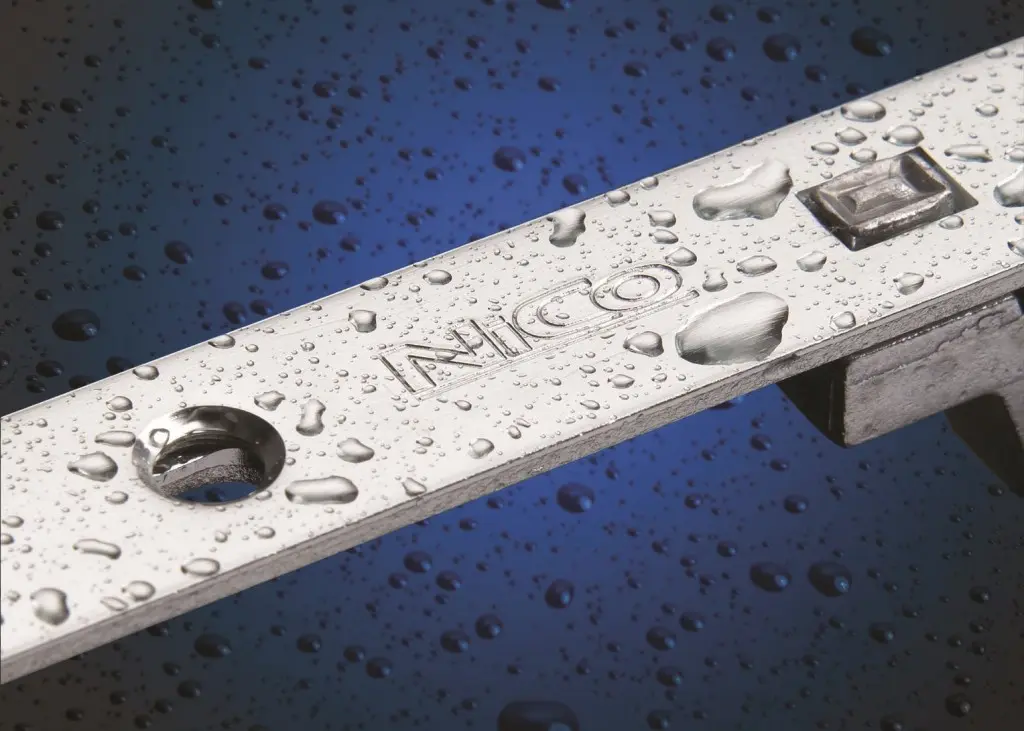

• Supercoat special corrosion resistant coating
• +/- 1mm adjustable cams for weatherseal compression
• Robust profile specific night vent keeps
• Strong. smooth and reliable gearbox for long life performance
• 10 year mechanical guarantee

Technical Data

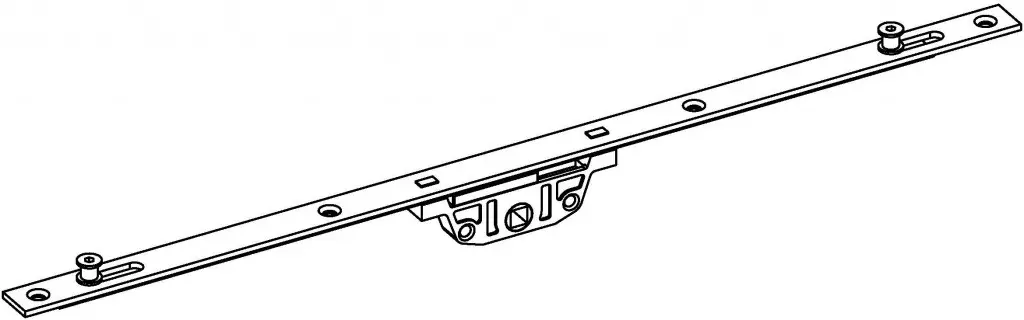

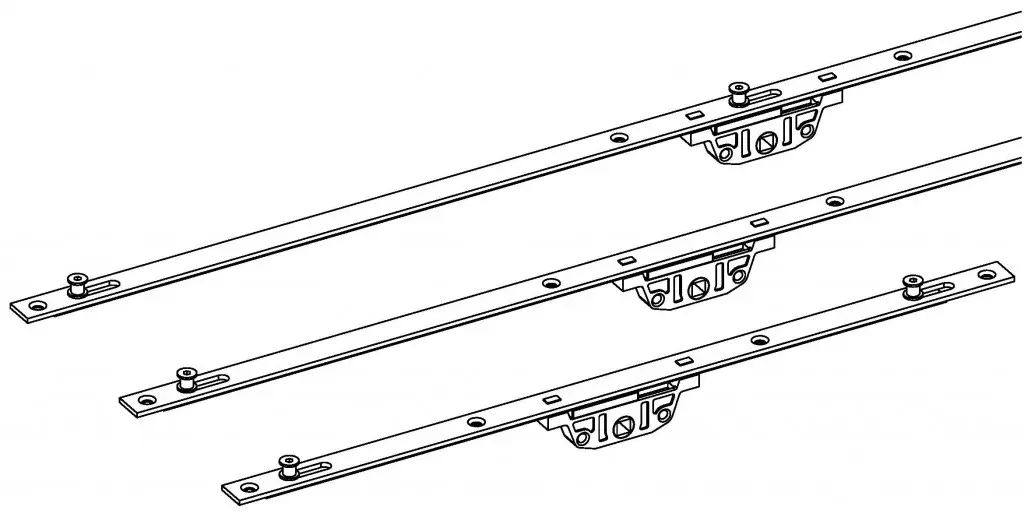

The Nico Espagnolette comes in a range of sizes, from 170mm up to 1150mm, with one to three cams and two to six fixing holes according to length. For the two longest sizes, an additional central cam provides compression on larger sashes.

The Espagnolette is available with lockcase backsets of 20mm or 22mm, a 7mm square spindle drive and operating handle fixing holes at 43mm centres. The eccentrically adjustable cams are either 7.8mm or 9mm according to customer requirements.

Fitting instructions are provided on the Espagnolette pdf in related downloads.

20mm Backset Espagnolettes

Brand

Nico
