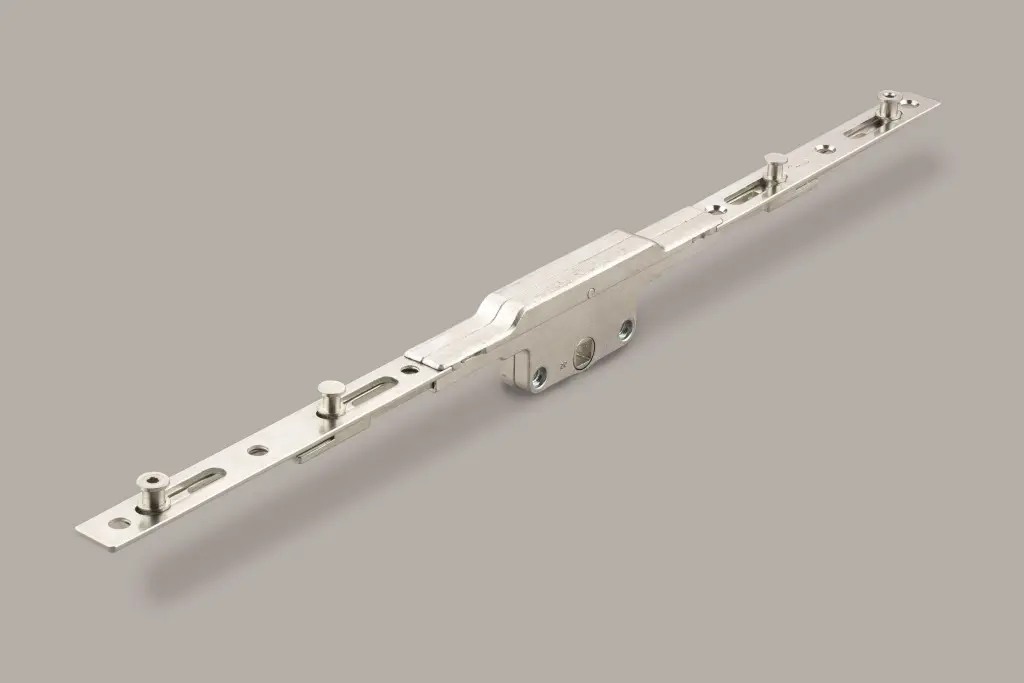

Rambolt Bi-Directional Security Espagnolette 22mm Backset 7.8mm Cam

Features & Benefits

• Rigorously tested ( see related downloads on this page )

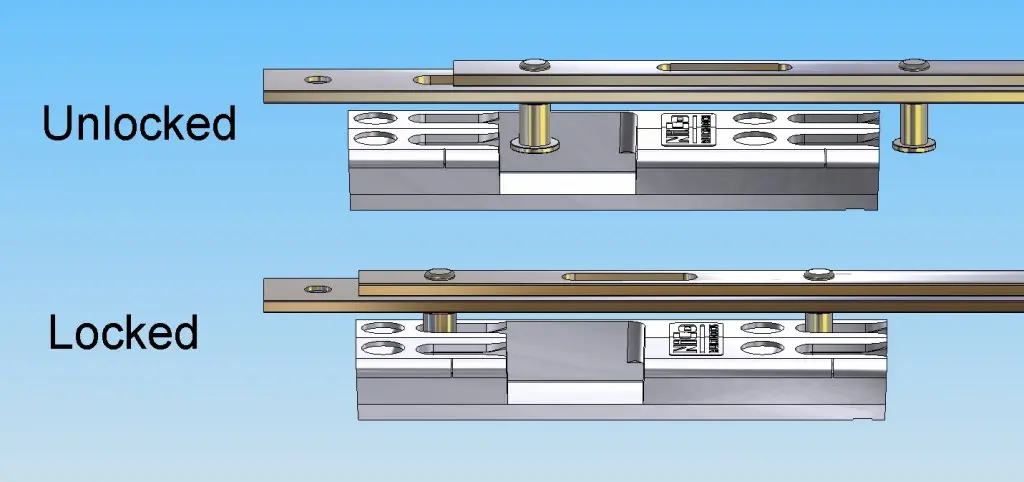

• All cams travel towards the vulnerable corners of the window
• Combination of adjustable and non adjustable cams to enhance security
• Enhanced security as a result of profile specific, 4 screw hole, solid zinc keeps

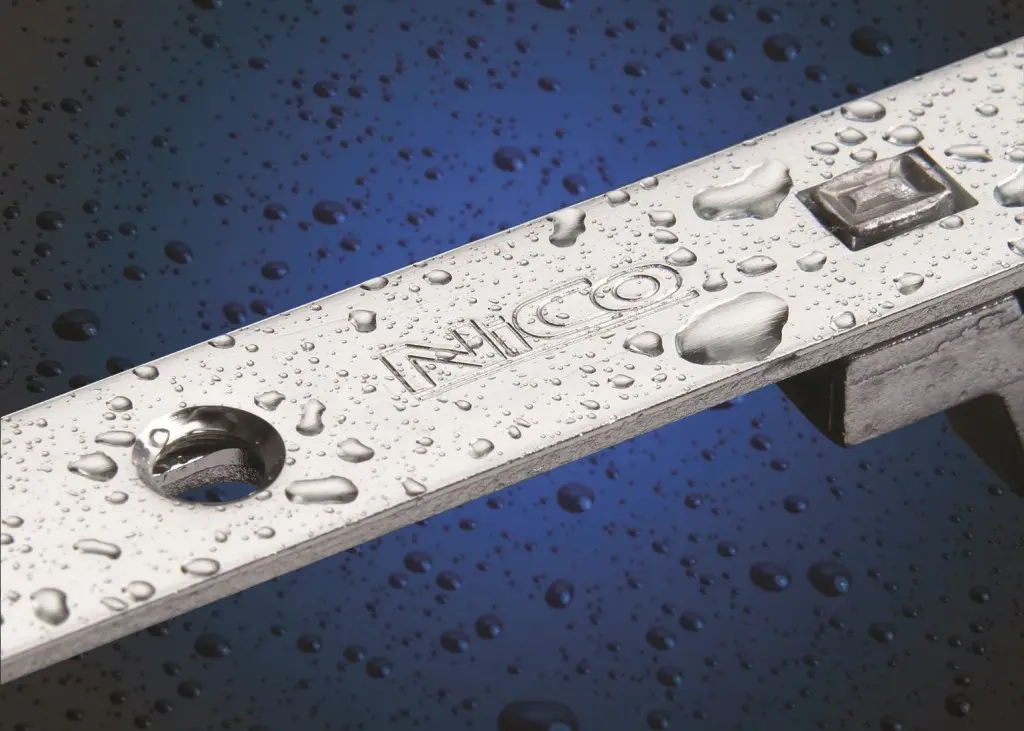

• Exceptional resistance to corrosion achieved by Supercoat finish
• Adjustable cams ( /- 1mm ) allow weatherseal compression
• Night vent facility provided on keeps
• Strong. smooth and reliable gearbox gives long life performance
• 10 year mechanical guarantee

Technical Data

The RAM Bolt is fast and easy to fit in a standard eurogroove. It features a 20mm or 22mm gearbox and eccentric cams of 7.8mm or 9mm. The cams allow weatherseal pressure adjustment of /- 1mm. Heavy guage materials and fixing points protect against attack.

Fitting instructions are provided on the RAM Bolt pdf in related downloads

Brand

Nico
