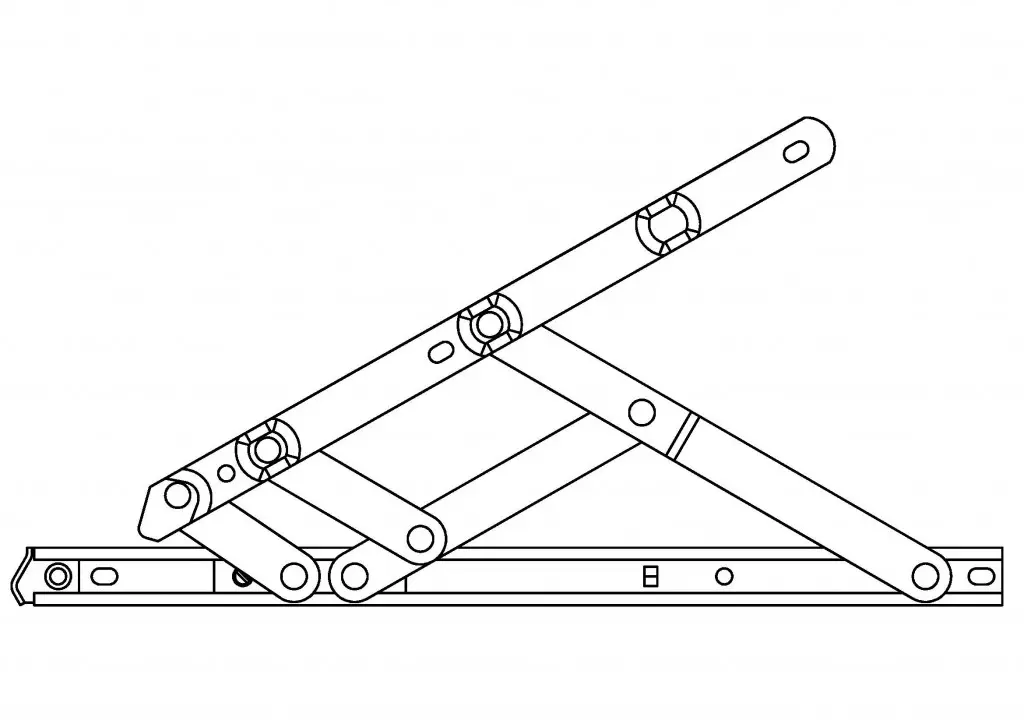

Standard Top Hung Friction Hinges 17mm

Features & Benefits

• Stainless Steel riveted nose cap for strength and reliability
• 3 stage counterbore process for improved resistance to wear
• Glass reinforced nylon slide eliminating breaking and wear
• 4.8mm Stainless Steel rivets for improved load carrying
• Stainless construction for exceptional corrosion resistance
• Brass adjustment screw for adjustable friction
• 10 year mechanical guarantee

Technical Data

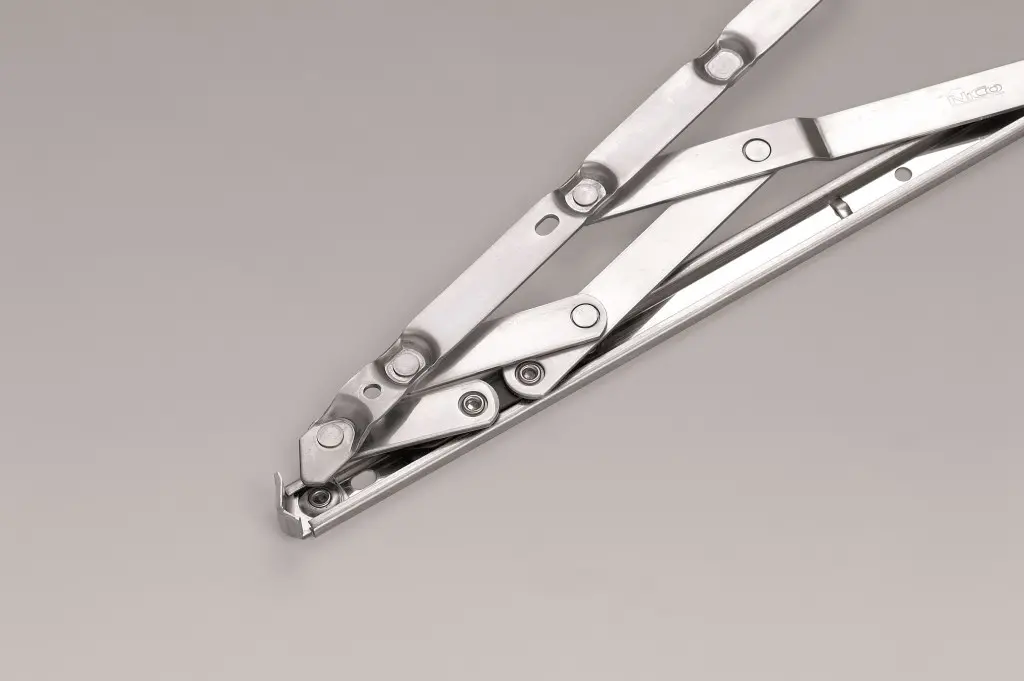

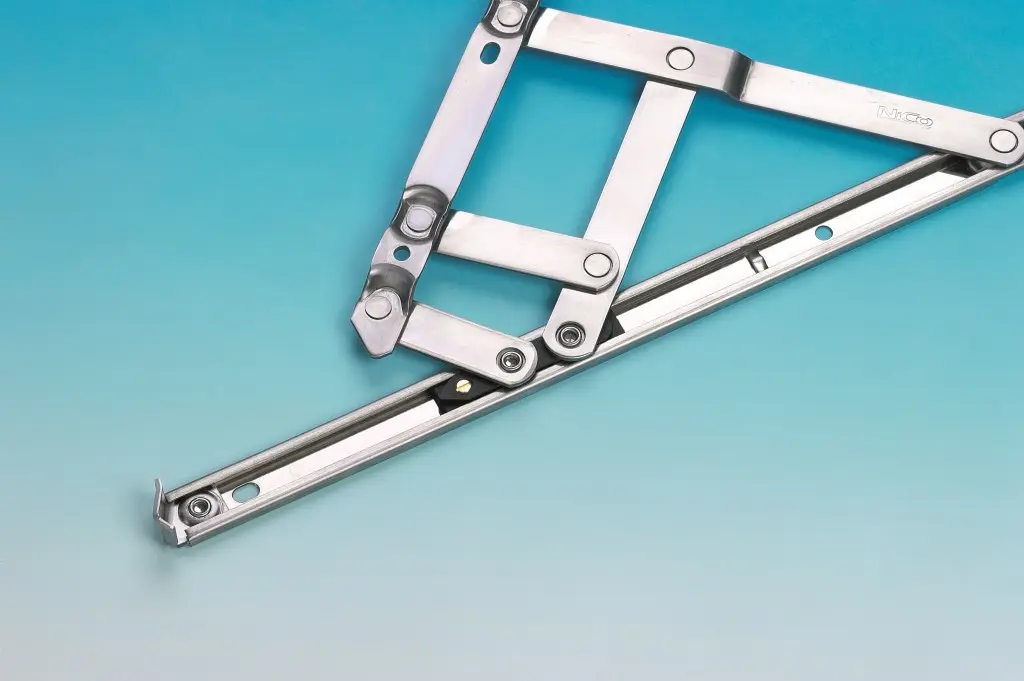

The Standard Friction Hinge is manufactured in stainless steel and offers excellent load bearing characteristics. The 13mm stack height hinge is a symmetrical non handed stay Slotted fixing holes in the base channel and sash bar, with a final fixing hole in each component, provide maximum sash/frame adjustment. The stainless nose-cap is riveted on to the hinge for extra strength and rivet holes are counterbored in a 3 stage manufacturing process. This means parts are manufactured to tight tolerances and ensures reliable operation of the finished hinges. The friction slide is made from high strength glass reinforced nylon with an adjustable resistance screw to regulate friction

Nico hinges have been endurance tested with their maximum load carrying capacity to 3 times the British Standard requirement.

Fitting instructions for Nico Friction Hinges are provided in the Standard Friction Hinges pdf and the Friction Hinge Fitting Guide link in related downloads.
