Description
Features & Benefits
- No awkward buttons or catches required for easy clean
- Automatically resets on closing
- Safe and simple for fast escape
- Stainless Steel riveted nose cap for strength and reliability
- 3 stage counterbore process for improved resistance to wear
- Glass reinforced nylon slide eliminating breaking and wear
- 4.8mm Stainless Steel rivets for improved load carrying
- Stainless construction for exceptional corrosion resistance
- Brass adjustment screw for adjustable friction
- 10 year mechanical guarantee
Technical Data

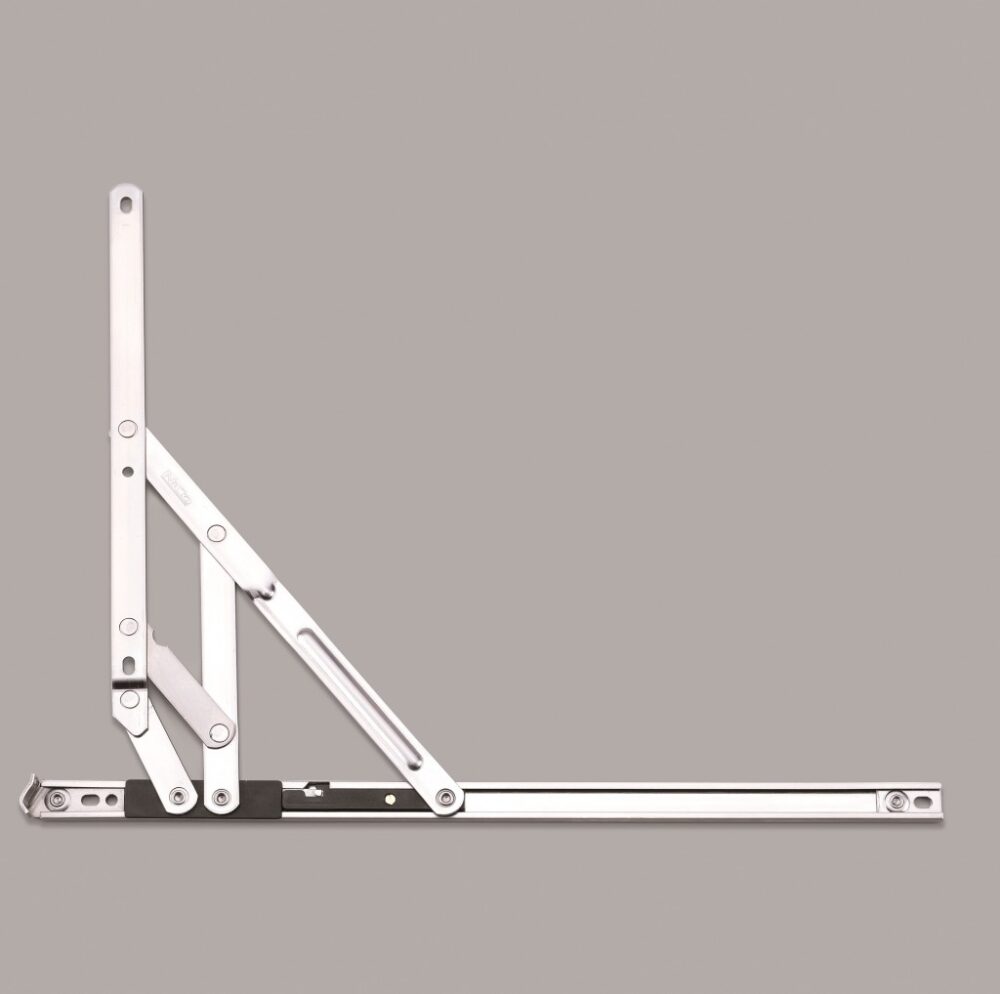

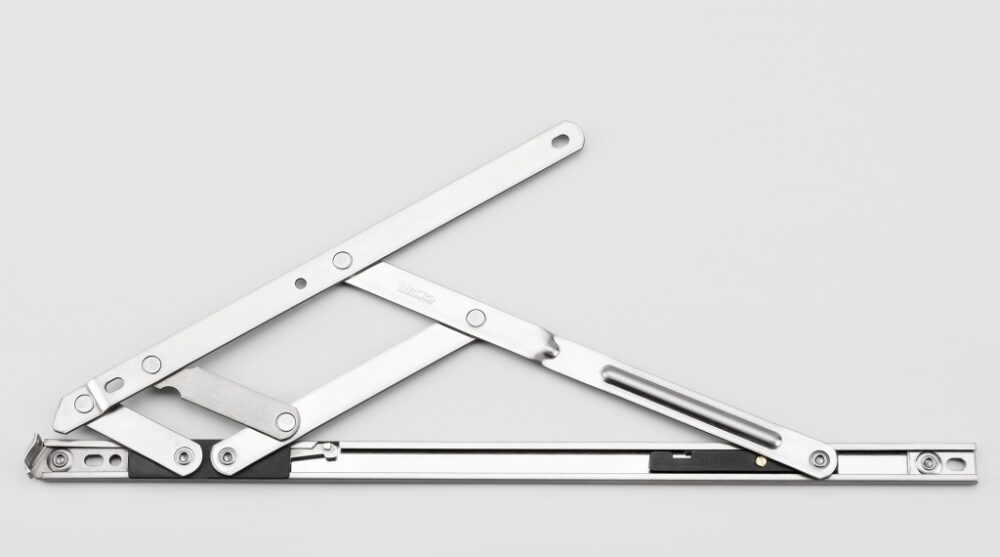

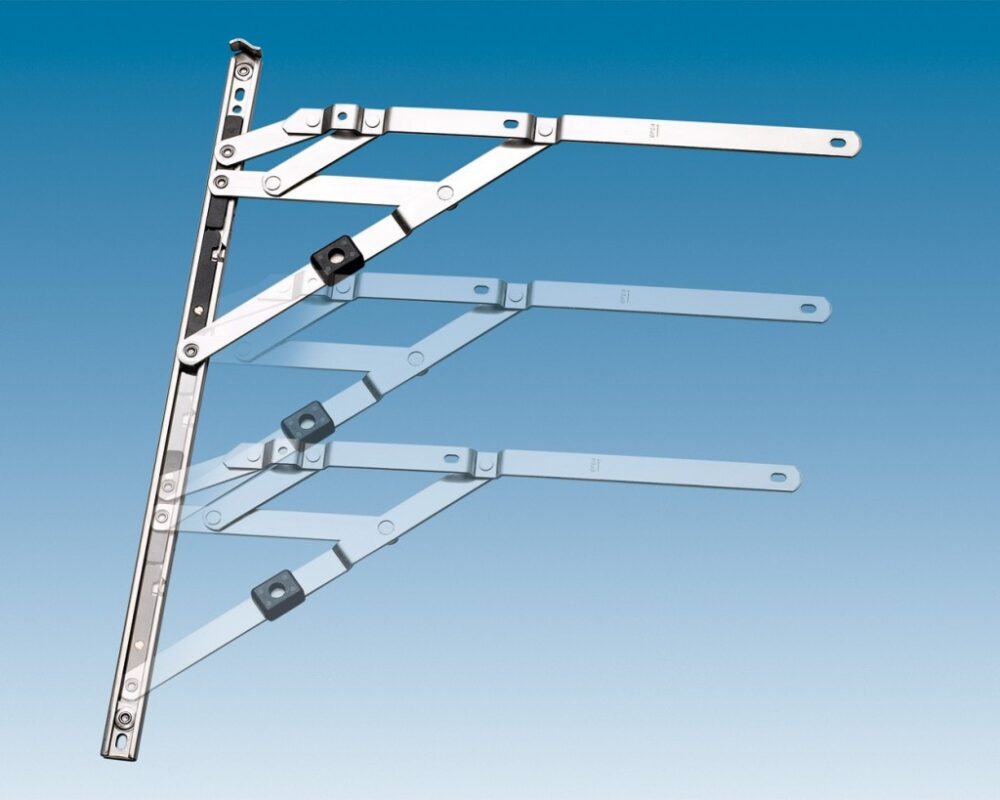

The Nico Egress Easy Clean Hinge is manufactured in stainless steel and offers excellent load bearing characteristics. Slotted fixing holes in the base channel and sash bar, with a final fixing hole in each component, provide maximum sash/frame adjustment. The all stainless steel nose-cap is riveted on to the hinge for extra strength and rivet holes are counterbored in a 3 stage manufacturing process. This means parts are manufactured to tight tolerances and ensures reliable operation of the finished hinges. The friction slide is made from high strength glass reinforced nylon with an adjustable resistance screw to regulate friction.

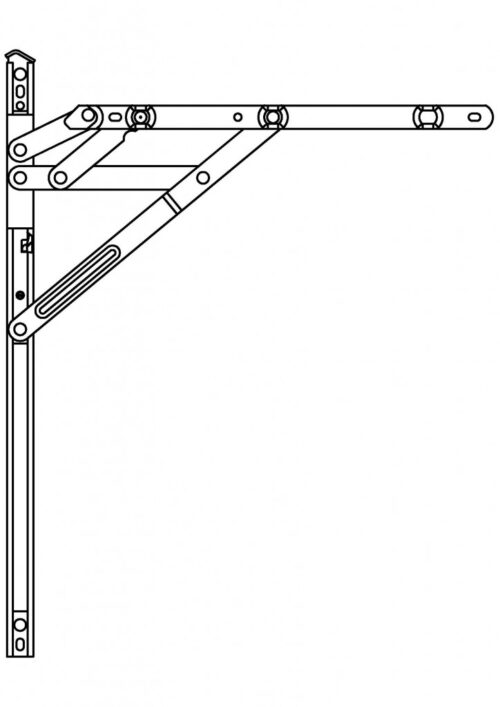

Egress Easy Clean Friction Hinges
Size |
300mm (12?) |
400mm (16?) |
300mm (12?) |
400mm (16?) |
| Vent Type | Side Hung | Side Hung | Side Hung | Side Hung |
| Max. Vent Width | 600mm | 700mm | 600mm | 700mm |
| Max. Vent Weight | 22kg | 26kg | 22kg | 26kg |
| Opening Angle | 85° | 90° | 85° | 90° |
| Stack Height | 13mm | 13mm | 17mm | 17mm |
| Bulk Packed | 50 each hand | 50 each hand | 40 each hand | 50 each hand |
| Part No. L/H Standard | 8534L | 8545L | 8536L | 8546L |
| Part No. R/H Standard | 8534R | 8545R | 8536R | 8546R |
| Part No. L/H Long Reach | N/A | 8547L | N/A | 8557L |
| Part No. R/H Long Reach | N/A | 8547R | N/A | 8557R |
Heavy Duty Egress Easy Clean Friction Hinges
Size |
300mm (12?) |
400mm (16?) |
300mm (12?) |
400mm (16?) |
| Vent Type | Side Hung | Side Hung | Side Hung | Side Hung |
| Max. Vent Width | 700mm | 800mm | 700mm | 800mm |
| Max. Vent Weight | 30kg | 35kg | 30kg | 35kg |
| Opening Angle | 80° | 90° | 80° | 90° |
| Stack Height | 14mm | 14mm | 17mm | 17mm |
| Bulk Packed | 20 pairs | 20 pairs | 20 pairs | 20 pairs |
| Part No. Left Hand | 8534LHD | 8547LHD | 8536LHD | 8557LHD |
| Part No. Right Hand | 8534RHD | 8547RHD | 8536RHD | 8557RHD |
Additional information
| Finish | |
|---|---|
| material | |
| handing |
Brand
Brand
Nico
